Introductions:
The Semi-Automatic Auger Filling Machine is a versatile and efficient way to fill non-free flowing powders. This machine is perfect for powders such as talcum powder, tooth powder, and ground spices, as well as sticky and fluffy powders like custard powder and pesticide powders.
Featuring a precisely designed auger, this filling machine uses the principle of positive displacement to displace the powder through a funnel and into the containers or pouches below. The machine is equipped with digital timer controls that allow the operator to fill the desired quantity of powder through an electromagnetic clutch-brake unit.
Adjusting the fill quantity is easy as the digital timer allows for setting the filling on time. The machine then fills the material directly into the containers or pouches from the bottom of the funnel. The containers or pouches need to be placed manually under the funnel.
Overall, the Semi-Automatic Auger Filling Machine is an efficient way to fill non-free flowing powders accurately and consistently. It is a must-have for any business that deals with powders regularly.
Hot Tags: semi automatic auger powder filling machine, China semi automatic auger powder filling machine manufacturers, suppliers, factory
Auger Filler Technical Parameters:
Model | DH-B2-1L(DCS-1A-321) | DH-B2-10L(DCS-1B-321) |
Control System | PLC &HMI Control integrated with Servo Driven system /Fill By Volume | |
Hopper Volume | 25L | 50L |
Fill Weight | 1-500g(With different auger tools) | 10-5000g(With different auger tools) |
Fill Accuracy | ≤ 100g, ≤±2% ; 100 — 500g ≤±1% ; ≥500g ≤±0.5% | |
Fill Rate | 10-30Unit/Min(Depends on target weight ,product density consistence and container mouth ID，operator container manually handling time taken) | |
Contact Parts | Fully Stainless Steel Construction and SUS304 for Product Contact Parts | |
Recipe Memory | 10 Product Recipe Memory | |
Power Supply | 3P AC208-415V 50/60HZ | |
Total Power | 0.93 KW | 1.4KW |
Total Weight | 130KGS | 190KGS |
Machine Size | 800×790×1900MM | 1140x970x2050MM |
The working process: set packing weight → Set auger turning counts (try different counts set until get target weight ) → press foot pedal to start the filling. | ||

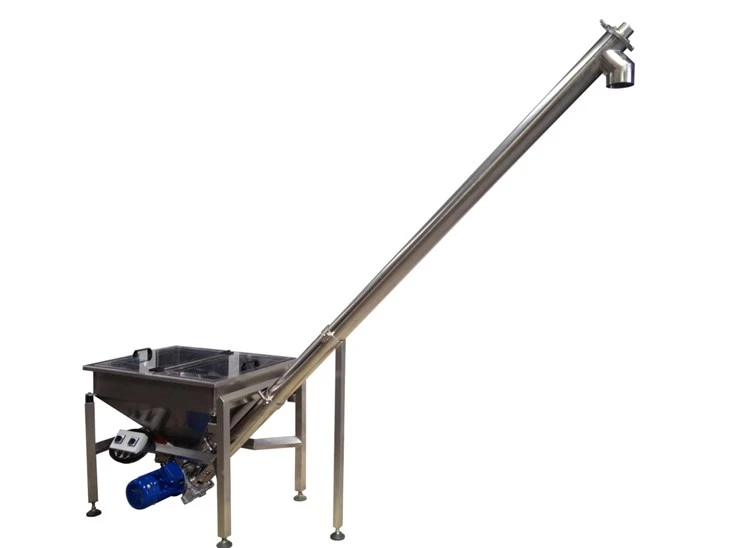

Screw Conveyor Technical Parameters:
Model | GS-2S2 | GS-2S3 | GS-2S5 | GS-2S7 | GS-2S8 | GS-2S12 |
Lifting Capacity | 2m3/h | 3m3/h | 5 m3/h | 7 m3/h | 8 m3/h | 12 m3/h |
Pipe Diameter | φ102 | φ114 | φ141 | φ159 | Φ168 | Φ219 |
Total Power | 0.61KW | 0.81W | 1.56KW | 2.26KW | 3.06KW | 4.06KW |
Total Weight | 100KGS | 130KGS | 170KGS | 200KGS | 220KGS | 270KGS |
Hopper Volume | 100L | 200L | 200L | 200L | 200L | 200L |
Lifting Height | 1800-2000mm as standard ,500-5000mm can be custom-made | |||||
Lifting Angle | 45 degree as standard, 30-60 degree can be custom-made | |||||
Hopper Volume | 100/200L as standard, 50-2000L can be custom-made | |||||
Product Contact Parts | Fully stainless steel construction and SUS304 for product contact parts as standard ,SUS316 for product contact parts can be custom-made | |||||
Conveying Screw | Full welded and well polished food grade type as standard, tack welded type as optional | |||||
Power Supply | 3P 208-415V 50/60HZ | |||||
Frequent Asked Questions:
Q1:Are you factory or trading company?
A: We are factory located in shanghai china with 20 years manufacturing experience.
Q2: What machines you can make?
A: Auger filler, screw and vacuum feeder, Ribbon and paddle mixer, Vertical form fill and seal powder packaging machine, Complete Powder bottling/canning Production line etc.
Q3: Can i visit your factory and send our team for training before order delivery?
A: Yes, sure! Welcome to visit us and get a training or make FAT!
Q4: What's your warranty and after-sale service?
A: One year warranty against shipping date ,our engineer can be at your site for commissioning and installation or via whatsapp/skype/wechat to provide remote technical support.
Q5 : What is the payment term?
A: 30% T/T deposit and 70% T/T before delivery or you can come to inspect the machines before delivery then make final payment!
Q6:How long is the delivery time?
A: Single machines order 20-40days, Production line order 60-90days.
