Introductions:

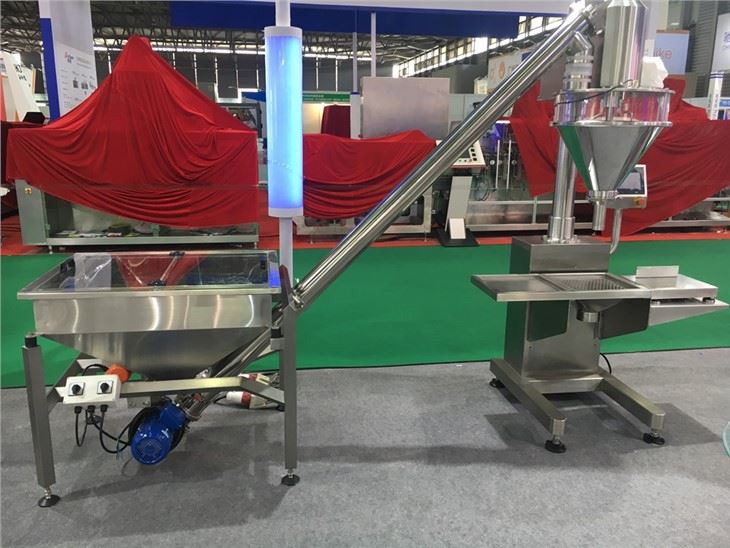

The Semi-Automatic Auger Filling Machine is a highly versatile and efficient device, specifically designed for filling non-free flowing, sticky, and fluffy powders. This machine is perfect for handling a wide range of powder products such as talcum powder, tooth powder, custard powder, pesticide powders, and ground spices.
The functioning of the Semi-Automatic dry powder auger filler is based on the principle of positive displacement of the screw. This means that the precisely designed auger displaces the product through a funnel. The filling process is controlled by a digital timer, which accurately measures and controls the required quantity of the powder. This is achieved through an electromagnetic clutch-brake unit.
To adjust the fill quantity, you can easily program the digital timer by setting the filling on time. The auger filler then fills the material directly into the container from below the funnel. It is important to note that the containers or pouches need to be manually positioned under the funnel for the filling process.
In summary, the Semi-Automatic Auger Filling Machine offers an efficient and reliable solution for filling various powders that may be difficult to handle. With its precise filling control and user-friendly operation, it is an ideal choice for industries that require accurate and consistent powder filling.
Hot Tags: semi automatic baby milk powder filling machine, China semi automatic baby milk powder filling machine manufacturers, suppliers, factory
Auger Filler Technical Parameters:
Model | DH-B2-1L(DCS-1A-321) | DH-B2-10L(DCS-1B-321) |
Control System | PLC &HMI Control integrated with Servo Driven system /Fill By Volume | |
Hopper Volume | 25L | 50L |
Fill Weight | 1-500g(With different auger tools) | 10-5000g(With different auger tools) |
Fill Accuracy | ≤ 100g, ≤±2% ; 100 — 500g ≤±1% ; ≥500g ≤±0.5% | |
Fill Rate | 10-30Unit/Min(Depends on target weight ,product density consistence and container mouth ID，operator container manually handling time taken) | |
Contact Parts | Fully Stainless Steel Construction and SUS304 for Product Contact Parts | |
Recipe Memory | 10 Product Recipe Memory | |
Power Supply | 3P AC208-415V 50/60HZ | |
Total Power | 0.93 KW | 1.4KW |
Total Weight | 130KGS | 190KGS |
Machine Size | 800×790×1900MM | 1140x970x2050MM |
The working process: set packing weight → Set auger turning counts (try different counts set until get target weight ) → press foot pedal to start the filling. | ||
Screw Conveyor Technical Parameters:
Model | GS-2S2 | GS-2S3 | GS-2S5 | GS-2S7 | GS-2S8 | GS-2S12 |
Lifting Capacity | 2m3/h | 3m3/h | 5 m3/h | 7 m3/h | 8 m3/h | 12 m3/h |
Pipe Diameter | φ102 | φ114 | φ141 | φ159 | Φ168 | Φ219 |
Total Power | 0.61KW | 0.81W | 1.56KW | 2.26KW | 3.06KW | 4.06KW |
Total Weight | 100KGS | 130KGS | 170KGS | 200KGS | 220KGS | 270KGS |
Hopper Volume | 100L | 200L | 200L | 200L | 200L | 200L |
Lifting Height | 1800-2000mm as standard ,500-5000mm can be custom-made | |||||
Lifting Angle | 45 degree as standard, 30-60 degree can be custom-made | |||||
Hopper Volume | 100/200L as standard, 50-2000L can be custom-made | |||||
Product Contact Parts | Fully stainless steel construction and SUS304 for product contact parts as standard ,SUS316 for product contact parts can be custom-made | |||||
Conveying Screw | Full welded and well polished food grade type as standard, tack welded type as optional | |||||
Power Supply | 3P 208-415V 50/60HZ | |||||
Frequent Asked Questions:
Q1:Are you factory or trading company?
A: We are factory located in shanghai china with 20 years manufacturing experience.
Q2: What machines you can make?
A: Auger filler, screw and vacuum feeder, Ribbon and paddle mixer, Vertical form fill and seal powder packaging machine, Complete Powder bottling/canning Production line etc.
Q3: Can i visit your factory and send our team for training before order delivery?
A: Yes, sure! Welcome to visit us and get a training or make FAT!
Q4: What's your warranty and after-sale service?
A: One year warranty against shipping date ,our engineer can be at your site for commissioning and installation or via whatsapp/skype/wechat to provide remote technical support.
Q5 : What is the payment term?
A: 30% T/T deposit and 70% T/T before delivery or you can come to inspect the machines before delivery then make final payment!
Q6:How long is the delivery time?
A: Single machines order 20-40days, Production line order 60-90days.
Q7:How to reach you?
A:By Cell Phone& Wechat& Whatsapp 0086-186-2117-5508
Or By Email:international2@dahepack.com
