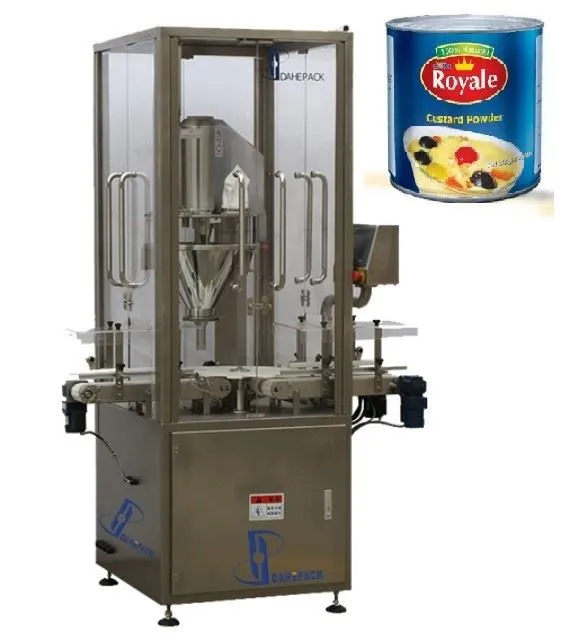

Introduction

Our machine is ideal for a wide range of applications including dry syrup, talcum, spices powder, flour Free Flowing Powders Chemicals, Pharmaceutical Powers, Food & Beverages, Cosmetics powder, Pesticides Powder, and more. It is specifically designed to handle various types of powders such as pharmaceutical products, chemicals, food ingredients, cosmetics, and pesticides. Whether you need to package dry syrup, talcum powder, or spices, our machine is capable of efficiently handling these materials. Additionally, it is suitable for the pharmaceutical industry, food and beverage industry, cosmetics industry, and other sectors that require precise and reliable powder packaging. With our machine, you can ensure the accurate and efficient packaging of your products, regardless of their form or consistency.

Main features

Our compact design model boasts a split hopper which makes cleaning a breeze. The unit's overall design is geared towards maximum efficiency and convenience.

The removable parts of the machine are constructed with stainless steel type 304 for easy maintenance and changeover.

Siemens Touch screen and Siemens PLC are both user-friendly and simple to operate.

The "NO BOTTLE, NO FILL" system is an innovative solution that effectively reduces the unnecessary waste of expensive powder. By implementing this system, the likelihood of powder wastage is eliminated, resulting in significant cost savings. This technology ensures that only when a bottle is present, the filling process commences, preventing any unnecessary spills or losses. Overall, this system provides an efficient and cost-effective solution to minimize the wastage of valuable powder resources.

A servo system controls the filling process with the ability to adjust speed and achieve highly accurate outcomes. To achieve this, the system allows for variable speed settings and ensures precise measurements during the filling process. This enables the system to provide consistent and reliable filling, eliminating the possibility of overflows or underfills. It is designed to meet the demands of industries requiring high precision and efficiency in the filling process.

Our high accuracy output is ensured through the use of inline filled cans check weigher and reject conveyor. These systems work together to maintain precision in the production process, guaranteeing the quality of our cans. By implementing this advanced technology, we can be confident in the weight accuracy of each can before it leaves our facility. Our reject conveyor also plays a crucial role, swiftly removing any cans that do not meet our specified weight requirements. With these measures in place, we are able to deliver consistent and reliable products to our customers.

Our machine boasts a range of star wheel sizes to cater to various container sizes, making it incredibly convenient to maintain and switch between different configurations.

Main Technical Data

Model	DH-Q2-100	DH-Q2-160
Container Size	φ20-100mm, H 15-150mm	φ30-160mm , H50-260mm
Filling Weight	1 – 500g	10 – 5000g
Filling Accuracy	≤ 100g, ≤±2%; 100 – 500g，≤±1%	≤ 500g, ≤±1%; >500g, ≤±0.5%
Filling Speed	20 - 40 bottles/min	20 - 40 bottles/min
Power Supply	3P AC208-415V 50/60Hz	3P AC208-415V 50/60Hz
Air Supply	6 kg/cm2 0.05m3/min	6 kg/cm2 0.05m3/min
Total Power	1.8Kw	2.3Kw
Total Weight	250kg	350kg
Overall Dimensions	1400×830×2080mm	1840×1070×2420mm
Hopper Volume	25L	50L
