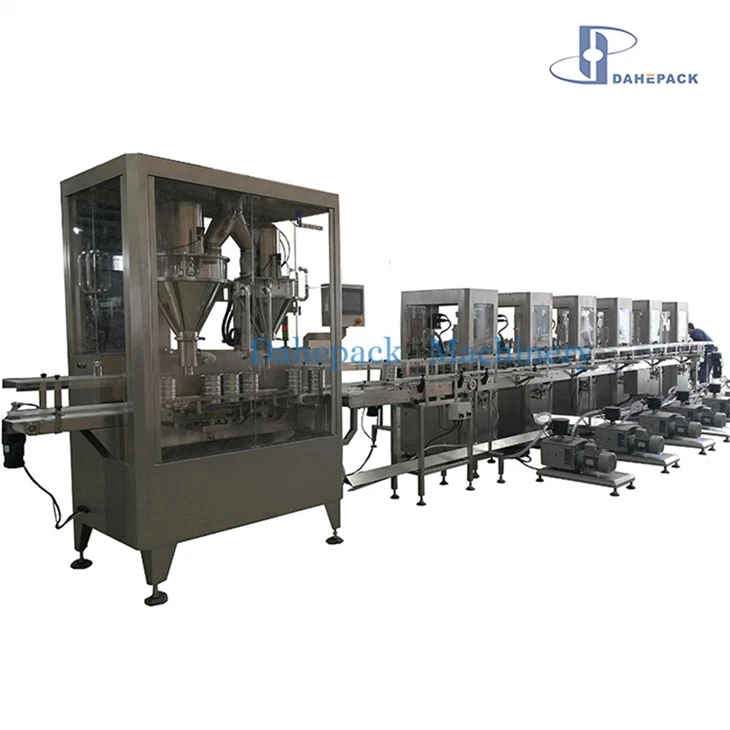

A fully automated auger filling machine is now available with a vacuum feeder, platform, and metal detector. This machine is designed to make your filling process simple, easy, and fast. The vacuum feeder ensures that the product is delivered to the auger without spillage or contamination. The platform allows the operator to work at an optimal height, reducing fatigue and improving efficiency. The metal detector ensures that your product is free from metal contaminants. Choose this machine, and you will enjoy a seamless production process that delivers high-quality, accurate, and consistent fills.
Powder Filling Machine
The machine detail discription:
We have developed a brand new machine based on the old turnplate feeding design. This innovative Auger filling system consists of main and assist fillers, ensuring precise and efficient filling. With the evolved feeding system, there is no need to clean the turntable, maintaining high precision throughout operation. This versatile machine can be seamlessly integrated into a complete can-packing production line, working in conjunction with other equipment. Its applications are wide-ranging, as it can effectively fill mold powder, albumen powder, condiments, dextrose, rice flour, cocoa powder, solid drinks, and more.
1 Line,Dual Filler (Main filler and Assist filler)
2 Single Motor and Air Control Can's transmit
Performing the weighing process using METTLER TOLEDO equipment is done twice, followed by two filling procedures. To ensure accurate measurements, the items to be weighed are placed on the scale twice. After which, they undergo two consecutive filling processes to prepare them for their intended use. By following these procedures, the accuracy and quality of the final product are guaranteed.
4Filling control By servo Motor.
Looking for a way to keep your equipment clean? Consider investing in a suction system machine! This powerful tool is designed to efficiently remove dirt and debris from all types of machinery, leaving them looking like new. With its strong suction capabilities, it can easily reach into hard-to-reach areas and remove even the toughest grime. So if you want to ensure that your machines stay in great condition for years to come, be sure to get your hands on a top-quality suction system machine today!
A device has been created to reject defective cans with weight deviations. The content of this message should be rephrased in order to convey the same information using slightly different wording.
7 Filling Height adjustable
8 Split Hopper
9 Siemens PLC and Contact Screen Control
10 The machine Enclosed By stainless steel
One feature of the container is that it can be easily cleaned due to its straight-line transmission. To create similar content, the information from the original text should be rephrased while still remaining true to its meaning. Therefore, we can mention that the container is designed with a straight-line transmission which makes it effortless to clean.
|
Model |
DH-Q3-D |
|
Dosing Mode |
Dual filler filling with online weighing |
|
Filling weight |
100-3000g |
|
Container size |
⌀60-135mm(special make 60-210mm); H 60-260mm |
|
Filling accuracy |
Filling weight 100-500g,Between ±1 Filling weight over500g, Between ±1.5-3g |
|
Filling speed |
Over 20-40Jars /min(Base 900g Powder); Over 40-50 Jars/min(Base 500g Powder) Exact speed depend the Jar size |
|
power supply |
3P,AC 208-415v 50/60HZ |
|
Total Power |
3.4 KW |
|
Air supply |
6kg/cm ,0.2CBM/MIN |
|
Total weight |
650KG |
|
Overall Dimension |
2650*1040*2330MM |
|
Hopper Volume |
50L (Main filling), 25L (assist filling) |
|
|
